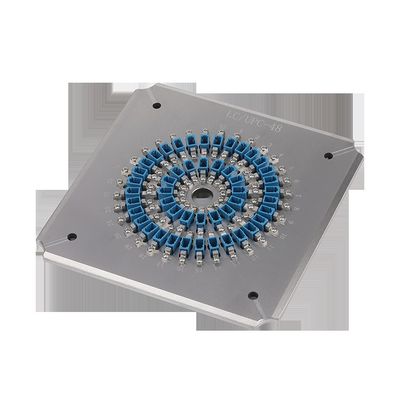

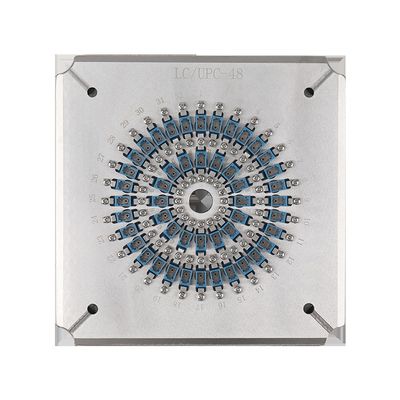

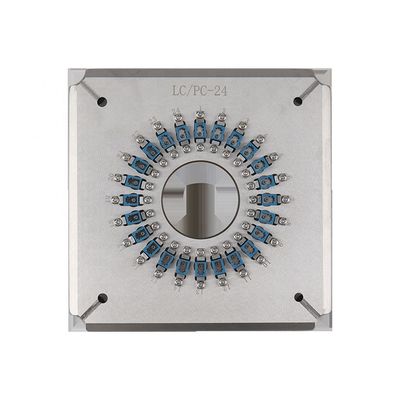

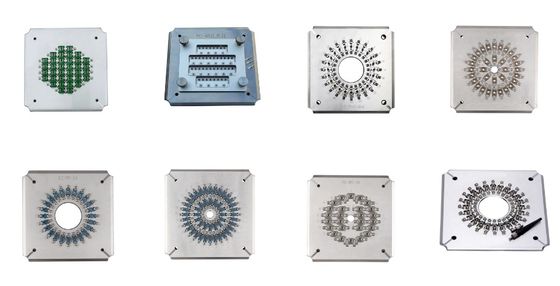

| Model | LC-UPC-24 | LC-UPC-40 | LC-UPC-48 |
|---|---|---|---|
| Brand | CLX | ||
| Connector Type | LC UPC | ||
| End-face | UPC | ||
| Ferrule Diameter | 1.25mm | ||
| Capacity | 24 positions | 40 positions | 48 positions |
| Insertion Loss | ≤0.20dB | ||
| Return Loss | ≥55dB (UPC) | ≥55dB (APC) | ≥55dB (APC) |
| Application | Polishing assembled LC UPC connectors | ||
| Material | Stainless Steel S136 | ||
| Dimension (L*W*H) | 174*174*26 mm | ||
| Net Weight / Gross Weight (kg) | 1.5 kgs / 2.0 kgs | ||
| Suitable machines | CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar models | ||
| Connector Type | SM/UPC | SM/APC | MM/UPC |
|---|---|---|---|
| Insertion Loss | ≤0.20dB | ≤0.20dB | ≤0.50dB |
| Return loss | ≥55dB | ≥60dB | ≥30dB |
| NO. | Parameters | UPC Criterion | APC Criterion |
|---|---|---|---|
| 1. | Radius of Curvature | 5-25mm | 5-12mm |
| 2. | Apex Offset | 0-50μm | 0-50μm |
| 3. | Fiber Height | -100~+50μm | -100~+50μm |
| 4. | Angle | n/a | 8.00+/-0.50° |
Established in 2010, we are an optical communications equipment company specializing in research, development, production, and technical services. We provide high-quality products, excellent after-sales service, and free technical support for fiber connector production challenges.
